The  range of non-invasive blood pressure cuffs has been
developed to facilitate |
| selection of the optimum bladder size recommended by the EUROPEAN STANDARD EN 1060-1. |
|
| PROCEDURE |
| 1. should be wrapped
around the patients limb in the normal manner. |
| the red line on the cuff will indicate the optimum bladder size that should be selected for the patient. |
| 2. Selection of the optimum bladder size is simply achieved by pressing down |
| the relevant number / colour shown on the SELECTION VALVE |
| 3. The optimum blood pressure measurement can now be taken by compleating the |
| normal measurement procedure. |
 |
 |
|||||||||||||||||||||||||||

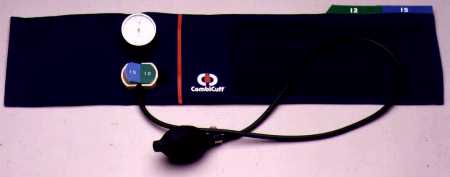

| No. 2. with bladder 12 x 35cm selected. |
No. 2. with bladder 15 x 43cm selected. |
|||||||||||||||||||||||||||
